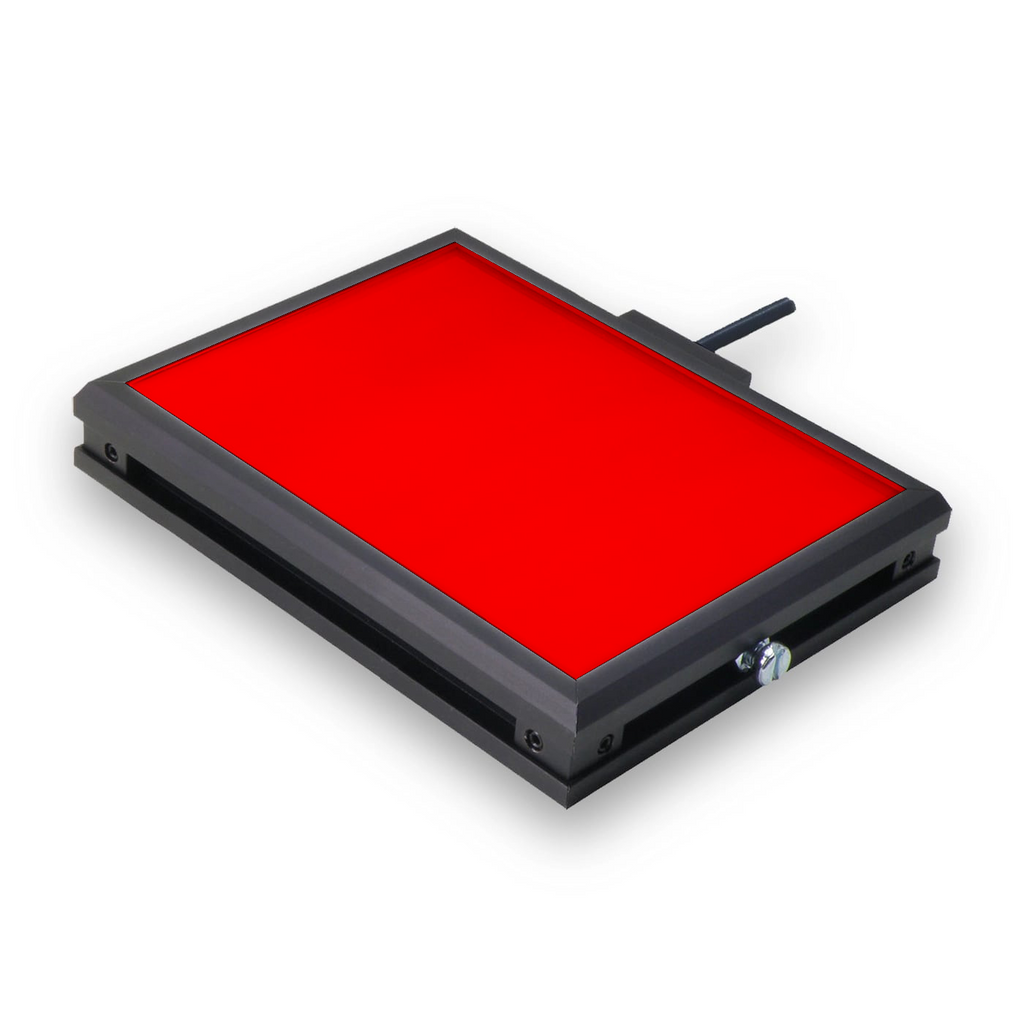

Back-Lit Collimated Backlights - CB Series
|Can Be Strobed||No|
|Can Be Overdrive Strobed||No|
|Can Be Constantly On||Yes|
|Can Be Dimmed||Not Dimmable|
|Connection||2M Flying Lead|
The CB series of Back-lit Collimated Backlights deliver precision silhouetting for a range of machine vision applications.
Application examples include glass and plastic container defect detection, printed curcuit board hole accuracy and thread inspection, etc.
The CB series is expandable up to 16³ x 16³ (406mm) in increments of 1� (25mm)
This series comes with LB111 Mounting Brackets.
|Electrical Specifications||0.03A per sq. inch|
|Normal Operating Temperature||0-60°C|
|Weight||8" X 8" unit - 1292.74g (45.6oz)|
|Standard Cable Information||2 m long -0/+150 mm (80" -0/+6") - 105°C rated PVC jacket, foil shield with drain.|
|Photobiological Risk Factor||
Exempt (No-Risk) Applicable Wavelengths: 880
Group 1 (Low-Risk) Applicable Wavelengths: 470, 520, 660, WHI
|Compliance||CE, RoHS, IEC 62471|
|Lumen Maintenance||L70 = 50,000 Hours|
||880nm Infra-Red (IR)|
Additional Wavelengths are available upon request by contacting Machine Vision Direct.
Part No Key
Advanced Illumination CB1616-66024 Downloads:
