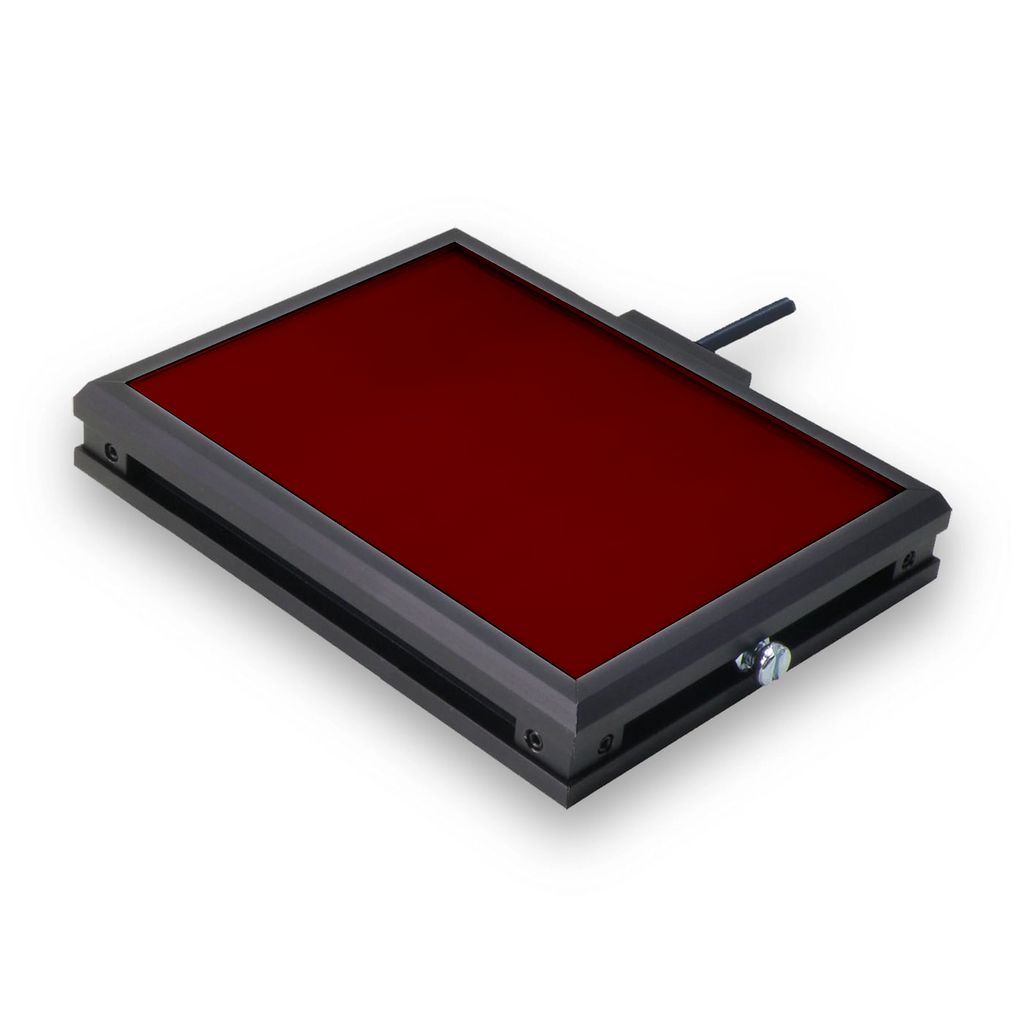

CB0606-880I3S Backlit Collimated BackLight, 880nm Infra-Red (IR), 06 in x 06 in, ICS 3S (I3S) Driver

Advanced IlluminationSKU: CB0606-880I3S
Lead Time: 2 Weeks

Sale price$1,462.00 USD

Shipping calculated at checkout

This is a Sample Product Title
Was $200.00 Now $100.00

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us


Back-Lit Collimated Backlights - CB Series

CB0606-880I3S Specifications:

Brand Advanced Illumination
Series CB
Wavelength 880
Color Infra-Red (IR)
Driver I3S
Ingress Protection IP50
Length 06 in
Width 06 in
Weight 837g
Can Be Strobed Yes
Can Be Overdrive Strobed Yes
Can Be Constantly On Yes
Can Be Dimmed Dimmable
Connection 2M Flying Lead

Full Description

The CB series of Back-lit Collimated Backlights deliver precision silhouetting for a range of machine vision applications.

Application examples include glass and plastic container defect detection, printed curcuit board hole accuracy and thread inspection, etc.

The CB series is expandable up to 16³ x 16³ (406mm) in increments of 1� (25mm)

This series comes with LB111 Mounting Brackets.

General Specs

Electrical Specifications 0.03A per sq. inch
Normal Operating Temperature 0-60°C
Weight 8" X 8" unit - 1292.74g (45.6oz)
Standard Cable Information 2 m long -0/+150 mm (80" -0/+6") - 105°C rated PVC jacket, foil shield with drain.
Photobiological Risk Factor Exempt (No-Risk) Applicable Wavelengths: 880
Group 1 (Low-Risk) Applicable Wavelengths: 470, 520, 660, WHI
Compliance CE, RoHS, IEC 62471
IP Rating IP50
Lumen Maintenance L70 = 50,000 Hours


Available Wavelengths

Advanced Illumination White Lights
Advanced Illumination 470nm Blue Light
470nm Blue
Advanced Illumination 520nm Green Light
520nm Green
Advanced Illumination 660nm Red Light
660nm Red
Advanced Illumination 880nm Infra-Red (IR) Light
880nm Infra-Red (IR)

Additional Wavelengths are available upon request by contacting Machine Vision Direct.

Mechanical Specs

 CB Series Back-lit Collimated Backlights Mechanical Specs | Advanced Illumination


Optical Specs

 CB Series Back-lit Collimated Backlights Optical Specs | Advanced Illumination

Electrical Specs

 CB Series Back-lit Collimated Backlights Electrical Specs | Advanced Illumination

Control Specs

 CB Series Back-lit Collimated Backlights Control Specs | Advanced Illumination


Part No Key

 CB Series Back-lit Collimated Backlights Part No Key | Advanced Illumination

Advanced Illumination CB0606-880I3S Downloads:

Advanced Illumination CB0606-880I3S Datasheet | Machine Vision Direct
Advanced Illumination CB0606-880I3S CAD PDF | Machine Vision Direct
Advanced Illumination CB0606-880I3S CAD DXF | Machine Vision Direct
Advanced Illumination CB0606-880I3S CAD STEP MODEL | Machine Vision Direct
