BL0606-47024 Backlit BackLight, 470nm Blue, 06 in x 06 in, 24 Volt Driver

Name: BL0606-47024 Backlit BackLight, 470nm Blue, 06 in x 06 in, 24 Volt Driver
Brand: Advanced Illumination
SKU: BL0606-47024
Price: 1383.00 USD
Availability: OutOfStock

Advanced IlluminationSKU: BL0606-47024

Lead Time: 2 Weeks

Price:

$1,383.00 USD

Shipping calculated at checkout

Quantity:

This is a Sample Product Title

Was $200.00 Now $100.00

Share this product

Downloads

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us

Back-lit Backlights - BL Series

BL0606-47024 Specifications:

Brand	Advanced Illumination
Series	BL
Wavelength	470
Color	Blue
Driver	24
Ingress Protection	IP50
Length	06 in
Width	06 in
Weight	711g
Can Be Strobed	No
Can Be Overdrive Strobed	No
Can Be Constantly On	Yes
Can Be Dimmed	Not Dimmable
Connection	2M Flying Lead

Full Description

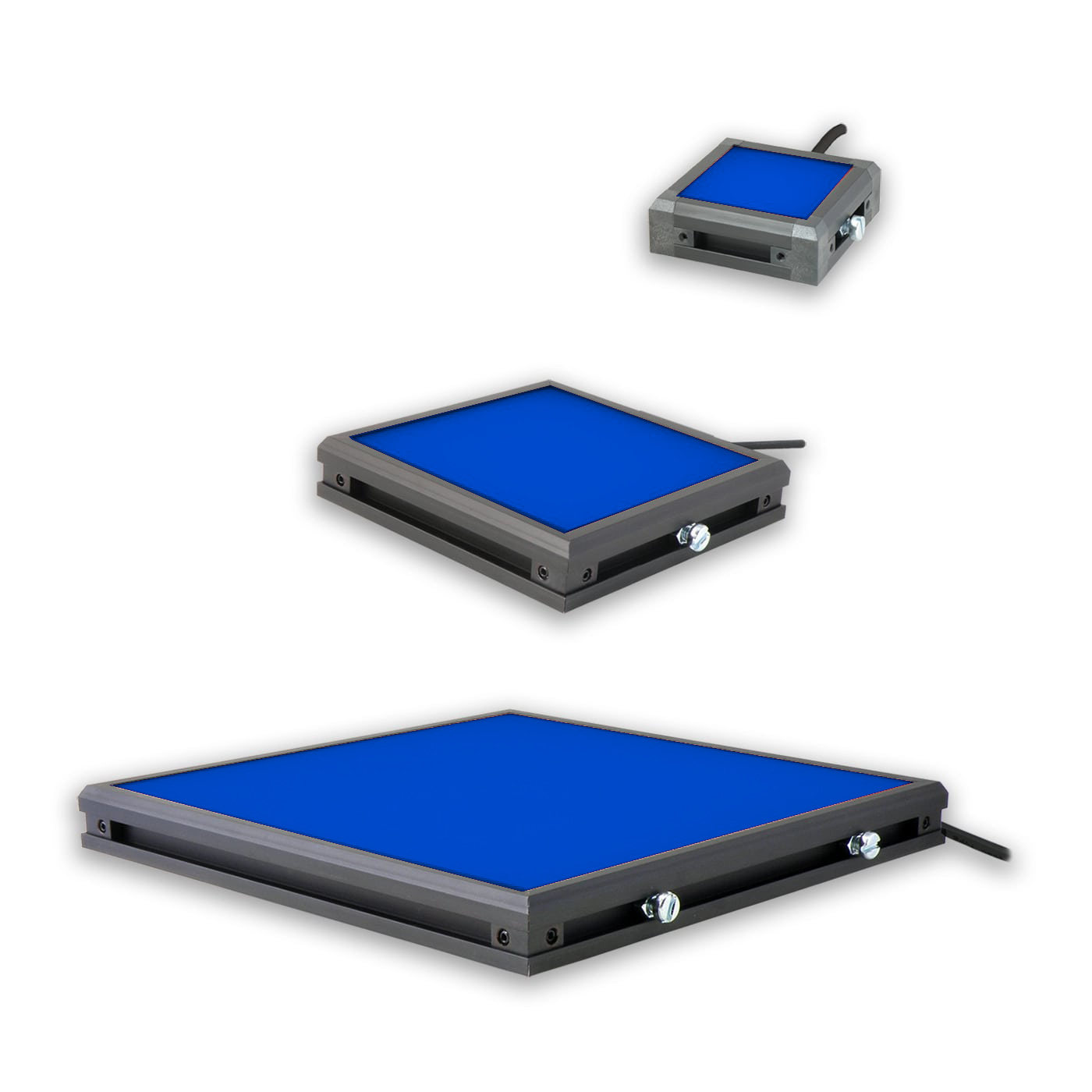

The BL Series of Back-lit Backlights offer a low profile design with a planar, back-lit array of LEDs.

BL Series backlights are part of our pre-engineered, expandable family of products.

Expandable products provide custom size and power options with short lead times.

Model numbers include the BL0202, BL0404, and BL0808.

This series comes with LB111 Mounting Brackets.

General Specs

Electrical Specifications	0.03A per sq. inch
Normal Operating Temperature	0 - 60°C
Weight	8" x 8" unit - 1034.2g (36.48oz)
Standard Cable Information	2 m long -0/+150 mm (80" -0/+6") - 105°C rated PVC jacket, foil shield with drain.
Photobiological Risk Factor	Exempt Applicable Wavelengths: 880 Group 1 (Low-Risk) Applicable Wavelengths: 470, 520, 660, WHI
Compliance	CE, RoHS, IEC 62471
IP Rating	IP50
Lumen Maintenance	L70 = 50,000 Hours
