24C-KIT001 Air Shield Add-On Kit for 24C Enclosures | APG Vision

APG VisionSKU: APG 24C-KIT001

Sale price$195.89 USD

Shipping calculated at checkout

This is a Sample Product Title
Was $200.00 Now $100.00

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us


APG Vision 24C-KIT001

24C-KIT001 Specifications:

Manufacturer APG Vision
Model Number 24C-KIT001
Product Type Air Shield Add On Kit
Compatible Series 24C
Country of Origin United States


Manufacturer Description:


APG Vision Viewport Protection Systems:

Air Curtain Faceplate (ACFP)

The Air Curtain from APG Vision is commonly referred to as the Air Curtain Faceplate or ACFP. The Air Curtain Faceplate assembly involves replacing the viewport gasket with a gasket that allows air to flow through the enclosure and across the front of the viewport. An air fitting is provided that is installed in the rear of the enclosure and the compressed air flows through the enclosure. Air should be supplied at approximately 2-5 PSI. An additional benefit to this approach is that the ACFP will help dissipate heat from the enclosure, however this method does prevent the enclosure from being fully sealed.

 APG Vision Air Curtain Faceplate Assembly | Machine Vision Direct

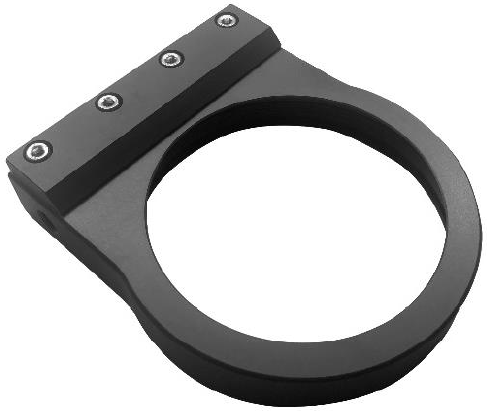

Air Shield

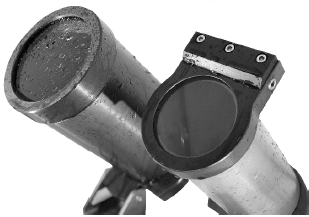

The Air Shield is an improvement over the Air Curtain Faceplate (ACFP) as it is externally mounted which allows the enclosure to be fully sealed. The Air Shield is an external add-on to the enclosure. If the Air Curtain Gasket included with your enclosure is not sufficiently clearing the debris or moisture from the viewport of your enclosure, then our Air Shield faceplate may be the right choice for your enclosure. It provides a high velocity, thin sheet of air across the viewport. The Air Shield can be operated at up to 100 PSI.

APG Vision 24C-KIT001 Air Shield Add-On Kit | Machine Vision Direct

Air Knife

The Air Knife is very similar to the air shield, it provides a curtain of air across the front of the the viewport and is strong enough to shield heavy contaminants such as liquid, metal shavings, wood chips, and oil from blocking the viewing window. The Air Shield can be operated at up to 100 PSI.

APG Vision Air Knife | Machine Vision Direct
