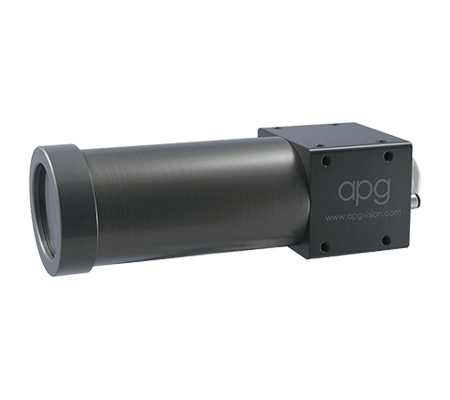

APG Vision 22C-AB

22C-AB Specifications:

Manufacturer APG Vision
Model Number 22C-AB
Product Class Basic Protection
Ingress Protection IP52
Material 6061 Anodized Aluminum
Barrel Length 4.2 inches
Viewport Material Acrylic
Cable Gland -
Mounting Pattern Universal
Mounting Pattern -
Mounting Pattern -
Mounting Pattern -
Country of Origin United States


Manufacturer Description:

22C SERIES ENCLOSURE, 4.2IN BARREL, 6061 ANODIZED ALUMINUM, ACRYLIC VP, PG16 CABLE GLAND, AIR CURTAIN KIT, UNIVERSAL ARM

Viewport Material Description:

Acrylic
This lightweight thermoplastic is an effective glass alternative with thermal insulation properties. It is known for its attractive glossy surface that is available in clear or nearly any color and in transparent, translucent and opaque options. Most colors can be formulated to ensure durability for long-term outdoor use. Acrylic withstands years of exposure to the elements and even corrosive atmospheres without losing its transparency, gloss or dimensional shape. It also will not darken or deteriorate from exposure to fluorescent light. Acrylic has good impact and chemical resistance. It can withstand high stresses for short periods and is one of the most scratch-resistant thermoplastics.
Polycarbonate
Polycarbonate is a durable material. Although it has high impact-resistance, it has low scratch-resistance. Therefore, a hard coating is applied to polycarbonate lenses. The characteristics of polycarbonate compare to those of polymethyl methacrylate (PMMA, acrylic), but polycarbonate is stronger and will hold up longer to extreme temperature.
Soda Lime Glass
Soda–lime glass, also called soda–lime–silica glass, is the most prevalent type of glass, used for windowpanes and glass containers (bottles and jars) for beverages, food, and some commodity items. Soda–lime glass accounts for about 90% of manufactured glass
Tempered Glass (Tempered Soda Lime Glass)
Soda-lime glass can also easily be tempered, making the material up to three times stronger than non-tempered glass. This type of toughened glass can be found in vehicle windows, shower doors, and more, due to its unique ability to cause less injury than non-tempered glass when shattered. Soda-lime glass can also be chemically strengthened to improve scratch resistance and hardness
Borosilicate Glass
Borosilicate glass is an “engineered “glass developed specifically for use in laboratories and applications where thermal, mechanical and chemical conditions are too harsh for standard soda lime glass. It is a type of glass with silica and boron trioxide as the main glass-forming constituents. Borosilicate glasses are resistant to thermal shock more than other kinds of common glass.
Germanium

Germanium glass is typically used for solutions in thermal systems, where you want to be able to make accurate infrared image measurements without the measuring devices being disturbed by UV and VIS light. Germanium glass is what is called a high-density IR-transmitting material that blocks UV and VIS wavelengths. Germanium lets light in the wavelengths between 8000-14000 nanometers (the infrared spectrum) pass through and basically blocks all other light.

Germanium (Not Included)

Germanium glass is typically used for solutions in thermal systems, where you want to be able to make accurate infrared image measurements without the measuring devices being disturbed by UV and VIS light. Germanium glass is what is called a high-density IR-transmitting material that blocks UV and VIS wavelengths. Germanium lets light in the wavelengths between 8000-14000 nanometers (the infrared spectrum) pass through and basically blocks all other light.

Germanium is not included with this Enclosure
