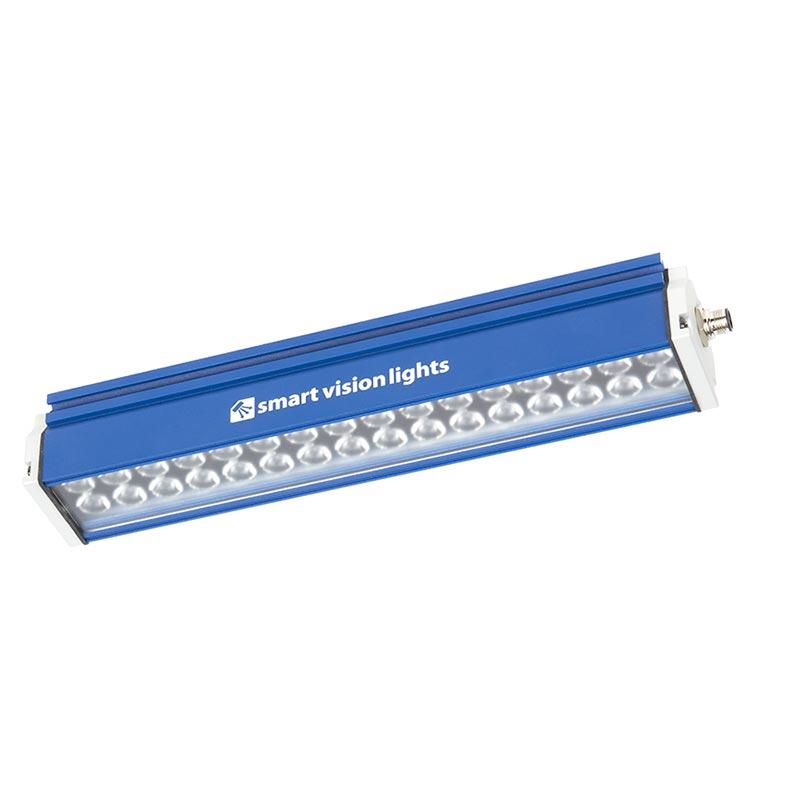

LHI600-DO-WHI-N10 | LHI600-DO Dual OverDrive Logistics Linear Light Bar (600mm) | White Light, Narrow 10 Degree Lens

Smart Vision LightsSKU: LHI600-DO-WHI-N10
Lead Time: 3 Business Days

Precio:
Precio de venta$927.00 USD

Gastos de envío calculados en la caja

 Más opciones de pago
Downloads

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us

Descripción

The LHI-DO Series is an OverDrive only light source that provides external illumination for logistics. This light can be used to create tunnel systems capable of illuminating any package of any size and ensuring perfect readability, no matter the shape or material. The LHI-DO Series is available in 300-mm and 600-mm lengths.

Recommended illumination usage: Bright Field, Direct Lighting, and Dark Field

Product Details

  • Dual OverDrive features Deca OverDrive with up to 10x Standard Light Output.
  • PNP and NPN strobe input
  • 5-pin M12 quick connect
  • Designed for use in High-Speed Conveyor Systems
  • Designed for use with a polarizer (optional)

Smart Vision Lights LHI600-DO Technical Specifications

LHI600-DO Deca Overdrive Operation Specifications

Electrical Input 24VDC +/€“5%
Input Current 0.97 A average max. per 300 mm segment, Peak 2.3 A charge rate per 300 mm segment
Input Power Max. 23.2 W per 300 mm segment
PNP Trigger  2mA @ 4VDC
7mA @ 12VDC
13.4mA @ 24VDC
NPN Trigger 9.9mA @ Common (0VDC)
Trigger Input PNP > +3.3 VDC (24 VDC max.) to activate OR NPN > GND (<1.4 VDC) to activate (not both)
Mode Control  Connect pin 5 to 1-10 VDC (10 - 100% output);
24 VDC (Max)
Strobe Duration Min. 25 μs | Max. 1ms
Strobe Trigger Latency 6 μs
Strobe Frequency Max 4 kHz or 1 / Duty Cycle as calculated, whichever is less.
Duty Cycle Max. 3.5%
Analog Intensity  The output is adjustable from 50% - 100% of
intensity limit by a 1 - 9 VDC signal. Jumpering pin 5 to pin 1 will provide maximum intensity.
Connection 5-pin M12 connector
Operating Temperature 10° to 40° C (14° to 104° F) | RH max 80% non-condensing humidity
Storage Temperature  20° to 70° C ( -4° to 158° F) | RH max 80% non-condensing humidity
Ip Rating IP65
Weight  LHI300-DO: 2.0 lbs (~900 g) | LHI600-DO: 3.6 lbs (~1.63 kg)
Compliances CE, IEC-62471, RoHS, UL, FCC, KCC Pending
Warranty 10 years



LHI600-DO Standard OverDrive Operation

Specifications

Electrical Input 24VDC +/€“5%
Input Current 0.97 A average max. per 300 mm segment, Peak 2.3 A charge rate per 300 mm segment
Input Power Max. 23.2 W per 300 mm segment
PNP Trigger  2mA @ 4VDC
7mA @ 12VDC
13.4mA @ 24VDC
NPN Trigger 9.9mA @ Common (0VDC)
Trigger Input PNP > +3.3 VDC (24 VDC max.) to activate OR NPN > GND (<1.4 VDC) to activate (not both)
Mode Control  Connect pin 5 to 1-10 VDC (10 - 100% output);
24 VDC (Max)
Strobe Duration Beginning at 1 ms | Max. 5 ms
Strobe Trigger Latency 6 μs
Strobe Frequency Max 4 kHz or 1 / Duty Cycle as calculated, whichever is less.
Duty Cycle Max. 3.5%
Analog Intensity  Not Applicable
Connection 5-pin M12 connector
Operating Temperature 10° to 40° C (14° to 104° F) | RH max 80% non-condensing humidity
Storage Temperature  20° to 70° C ( -4° to 158° F) | RH max 80% non-condensing humidity
Ip Rating IP65
Weight  LHI300-DO: 2.0 lbs (~900 g) | LHI600-DO: 3.6 lbs (~1.63 kg)
Compliances CE, IEC-62471, RoHS, UL, FCC, KCC Pending
Warranty 10 years

Working Distance

Smart Vision Lights recommends the LHI-DO Series be used at a working distance between 500 mm to 2000 mm.

Lens Options

The LHI600-DO from Smart Vision Lights is available in three standard lens variations (additional variations available upon request from Machine Vision Direct)

Lens Option Beam Angle

N10

Narrow 10°

10 Degrees

Narrow, 10° angle-cone lenses create a narrow beam
of illumination and are used for the longest working
distances.

N14

Narrow 14°

(Standard)

14 Degrees

Narrow, 14° angle-cone lenses create are standard. They create a narrow illumination beam and are used for long working distances.

W30

Wide 30°

30 Degrees

Wide, 30° angle-cone lenses create a large area of illumination. They create a floodlight effect and can be used for shorter working distances.



Duty Cycle of Dual OverDrive Lights

Dual OverDrive lights will always begin the first 1 ms of operation in Deca OverDrive, followed by a shift down to Standard OverDrive for the remaining trigger, up to an additional 5 ms maximum for the LHI-DO Series.

LHI-DO Duty Cycle Smart Vision Lights

The duty cycle of Dual OverDrive on the LHI-DO Series is 3.5%.

SafeStrobe

SafeStrobe„¢ is a unique technology that applies safe working parameters to ensure high-current LEDs are not damaged by driving them beyond their limits, such as maximum strobe time or duty cycle. This is especially beneficial for overdriving our high-current LEDs.

Wavelength Colors

Wavelength
Color
Description
WHITE
Advanced Illumination White Lights
WHITE
625
Advanced Illumination 660nm Red Light
625nm Red

Additional Wavelengths are available upon request by contacting Machine Vision Direct.

For colors not listed or available online, contact Support@MachineVisionDirect.com

OverDrive Wiring
Wiring Configuration for STROBE/PULSE Overdrive Operation

Smart Vision Lights OverDrive Driver Wiring


MOUNTING
The LHI Series is easily mounted with the built-in T-slot rail system.
Smart Vision Lights SVL LSR Mounting

LHI600-DO Downloads

LHI600-DO Datasheet | Smart Vision Lights
LHI600-DO 3D STEP Model | Smart Vision Lights
LHI600-DO 2D Drawing | Smart Vision Lights
LHI600-DO PDF Dimension Drawing | Smart Vision Lights



Possible Part Configurations:
LHI600-DO-625-N10
LHI600-DO-WHI-N10
LHI600-DO-625-N14
LHI600-DO-WHI-N14
LHI600-DO-625-W30
LHI600-DO-WHI-W30
LHI600-DO-625-N10-LPI
LHI600-DO-WHI-N10-LPI
LHI600-DO-625-N14-LPI
LHI600-DO-WHI-N14-LPI
LHI600-DO-625-W30-LPI
LHI600-DO-WHI-W30-LPI
