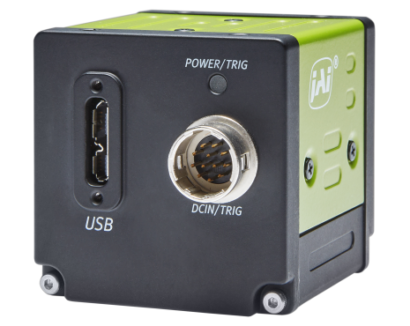

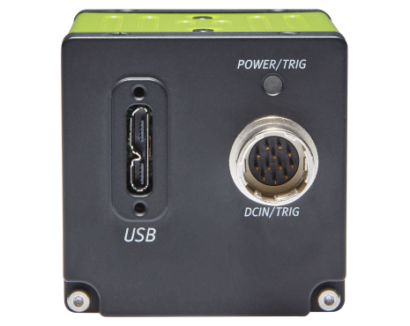

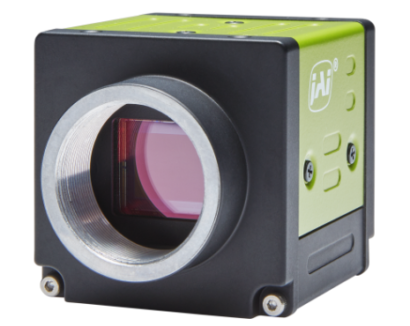

The SP-12401C-USB provides 12-megapixel color resolution at up to 23.4 fps over a standard USB3 Vision interface. Featuring the Sony Pregius IMX304 CMOS imager, it delivers outstanding low-noise image quality suitable for a wide range of high resolution machine vision applications.
Spark Series: High resolution area scan cameras
Spark Series area scan cameras are the perfect choice for machine vision applications demanding high quality images with the highest possible throughput. They feature the latest CMOS imagers delivering high resolution images at speeds as much as 10 times faster than traditional CCD cameras. For example, 45-megapixel (MP) models can deliver over 50 fps output while some 5-MP models run at 250 fps or more. Using the region-of-interest (ROI) feature, even higher frame rates can be achieved.
Technical Specifications
Product Line | Spark Series |
Model | SP-12401C-USB |
Type | Area Scan |
Color/Monochrome | Color |
Light Spectrum | Visible |
Resolution | 12.4 MP |
Resolution WxH | 4088 x 3000 px |
Frame Rate/Line Rate | 23 fps |
ROI | Yes |
Interface | USB3 Vision (PoUSB) |
Sensors | 1xCMOS |
Sensor Model | IMX305 |
Optical Format | 1.1 inch |
Cell Size | 3.45 x 3.45 µm |
Shutter | Global shutter |
Sensor Diagonal | 17.6 mm |
Active Sensor Dimensions | 14.2 x 10.4 mm |
Camera Dimensions | 44 x 44 x 44 mm |
Weight | 130 g |
Video | |
Lens Mount | C-Mount |
Power Consumption | 3.7 Watt |
Operating Temperature (Ambient) | -5°C to +45°C |
