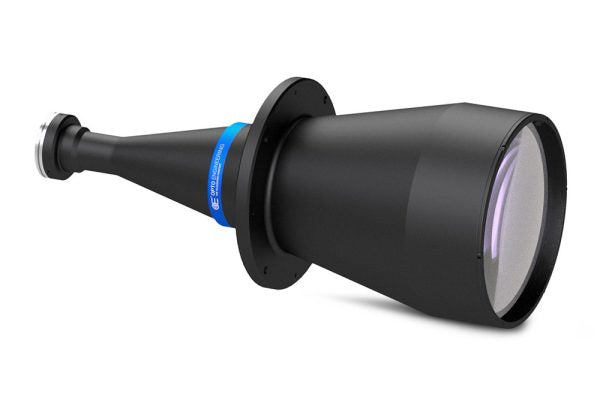

Opto Engineering TC4MHRP144-F
TC4MHR series features high-resolution telecentric lenses designed for sensors up to 4/3′′ and is the perfect choice for advanced metrology applications. Our TC4MHR series ensures unmatched resolution, low distortion, and homogeneous image quality while offering the best performance-to-price ratio.
TC4MHR lenses feature a compact and robust design allowing easy industrial integration. Additionally, the set screws in the eyepiece part will enable you to adjust the camera phase easily.
TC4MHRP144-F Technical Specifications:
Product Line / Series | TC4MHR |
Brand | Opto Engineering |
Lens Type | Telecentric |
IP Rating | Not Specified |
Magnification | 0.122× |
Image Circle Diameter | 22 mm |
Image Size Dimensions | Not Specified |
Imager Format | 4/3″ |
Distortion Typical (%) | < 0.08 |
Distortion Maximum (%) | < 0.1 |
Phase Adjustment | Yes |
Telecentricity Typical | < 0.05° |
Telecentricity Maximum | 0.10° |
Working Distance | 396 mm |
Depth Of Field | 27.8 mm |
Working ƒ/N | ƒ/8 |
Resolution (Pixel Size) | 42 μm |
Mount | F-Mount |
Dimensions Approximate | 491.6 x 200 x 200 mm |
Front Diameter | 200 mm |
Weight | 5990 Grams |
Filter Thread | No Filter Threads |
Operating Temperature Range | 0 to 40°C |
Storage Temperature Range | 0 to 50°C |
Operating Relative Humidity (%) | Not Specified |
Installation Location | Not Specified |
Temperature Sensor | No |
FoV @ 1″ | 116.31 x 61.56 mm |
Fov @ 1.1″ | 116.07 x 85 mm |
FoV @ 4/3″ | 155.16 x 86.97 mm |
